VB 2D 270° LiDAR Sensor

  • Overview
  • Specs
  • Applications
  • Downloads

ØFeature:

lThe single-line scanning design uses ToF time-of-flight ranging technology to measure distance based on the round-trip time difference of the laser pulse.

The LiDAR ranging accuracy does not change with distance, and the detection of distant objects is more accurate.

lHigh-speed ranging: ranging frequency 27K-45KHz

lAdopt industrial interface design and use network protocol to transmit point cloud data

lStrong resistance to interference of ambient light;dust and water resistance level:IP65





ØApplication scenarios:






VB Series is suitable for application needs in diferent industries, such as robotics, security and surveillance, industrial automationand smart logistics.

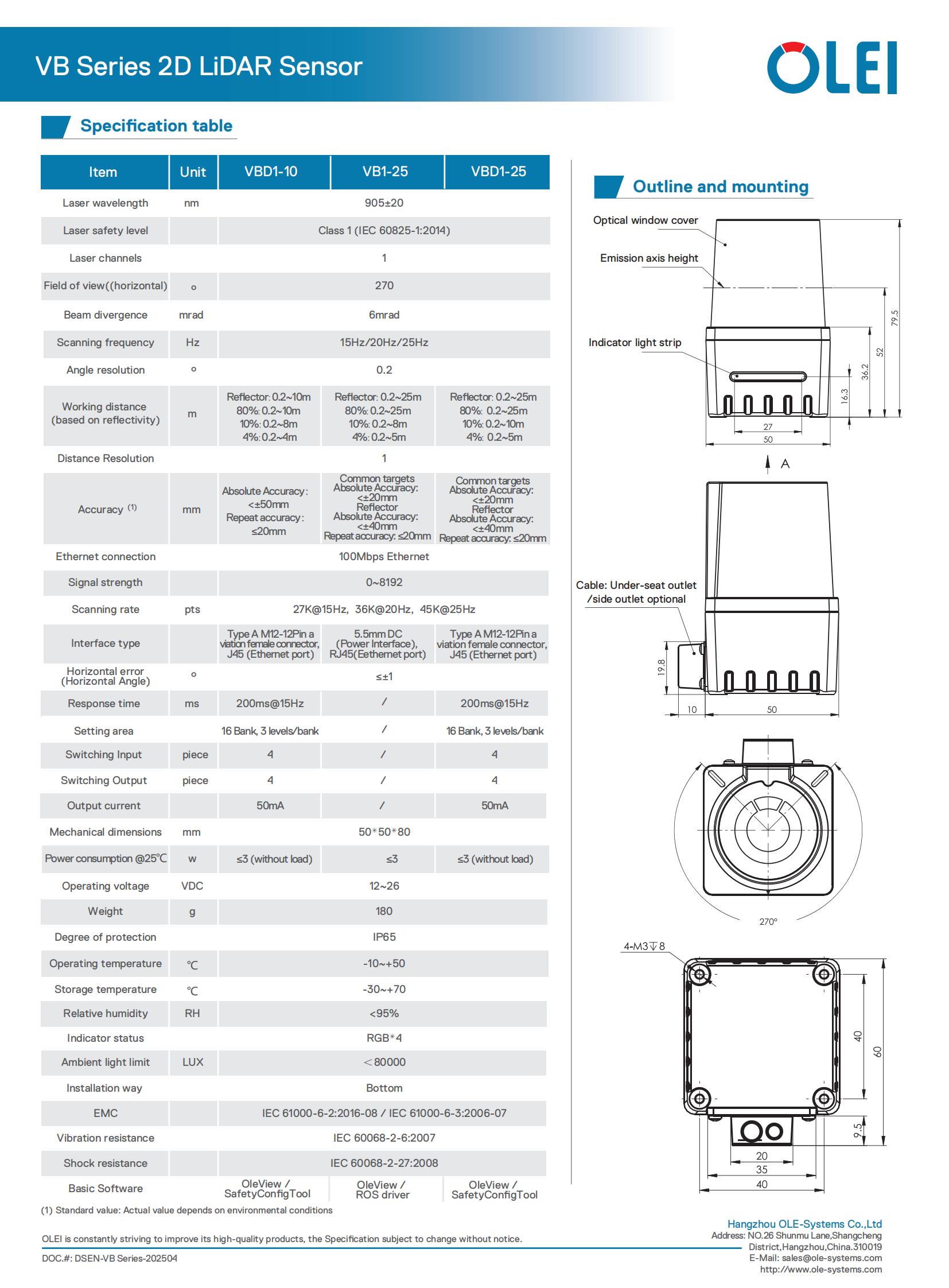

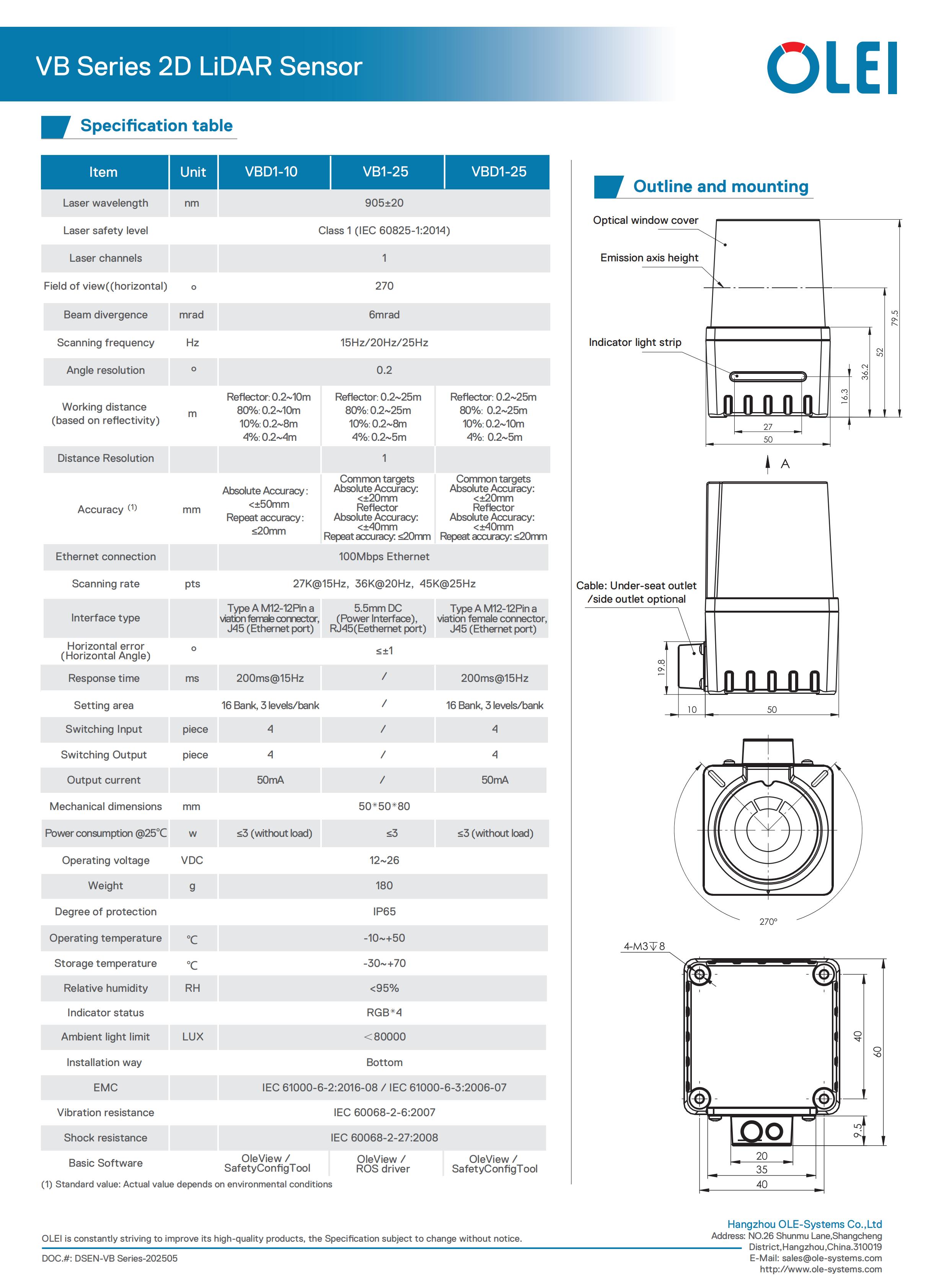

Datasheet

Num File name File type File layout Update time Operate
1 VB - datasheet_EN document pdf 2025-01-21 Download

Software

Num File name File type File layout Update time Operate
No data

Communication Protocol

Num File name File type File layout Update time Operate
No data

DesignDrawing

Num File name File type File layout Update time Operate
1 VB - CAD Drawings_EN DesignDrawing pdf 2025-01-21 Download
