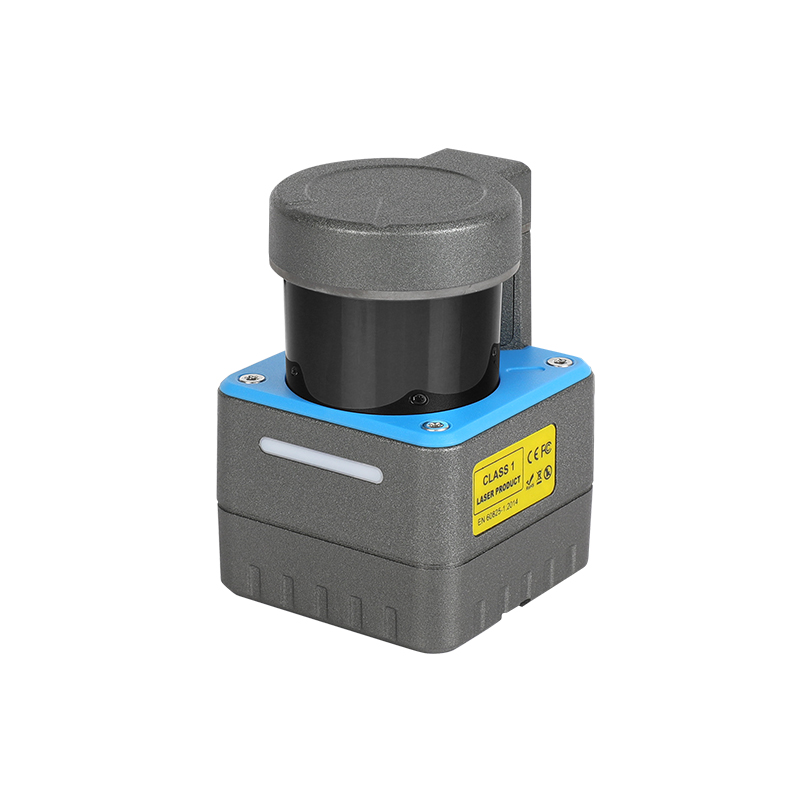

LR-1BS5H : 2D 270° Data Output LiDAR Sensor

  • Overview
  • Specs
  • Applications
  • Downloads

ØFeature:

lSuitable for SLAM navigation and point cloud obstacle avoidance strategies,

lUser-settable weak signal threshold strength adjustment to cope with different usage scenarios,

lBuilt-in multi-level ltering algorithm, customers can set as needed to deal with tailing problems,

lFixed 0.225° angle resolution,

lHorizontal plane error of ±0.5°to ensure horizontal scanning distance,

lMaximum point cloud density is 40k/s: Provide azimuth, distance, reflection intensity and other data,

lCertication: FCC, EMC, CE, RoHS, REACH,FDA,

lIP66 Protection Level




ØApplication scenarios:


LR-1BS5 is suitable for application needs in diferent industries, such as robotics, security and surveillance, industrial automationand smart logistics.



LR-1BS5 is suitable for application needs in diferent industries, such as robotics, security and surveillance, industrial automationand smart logistics.

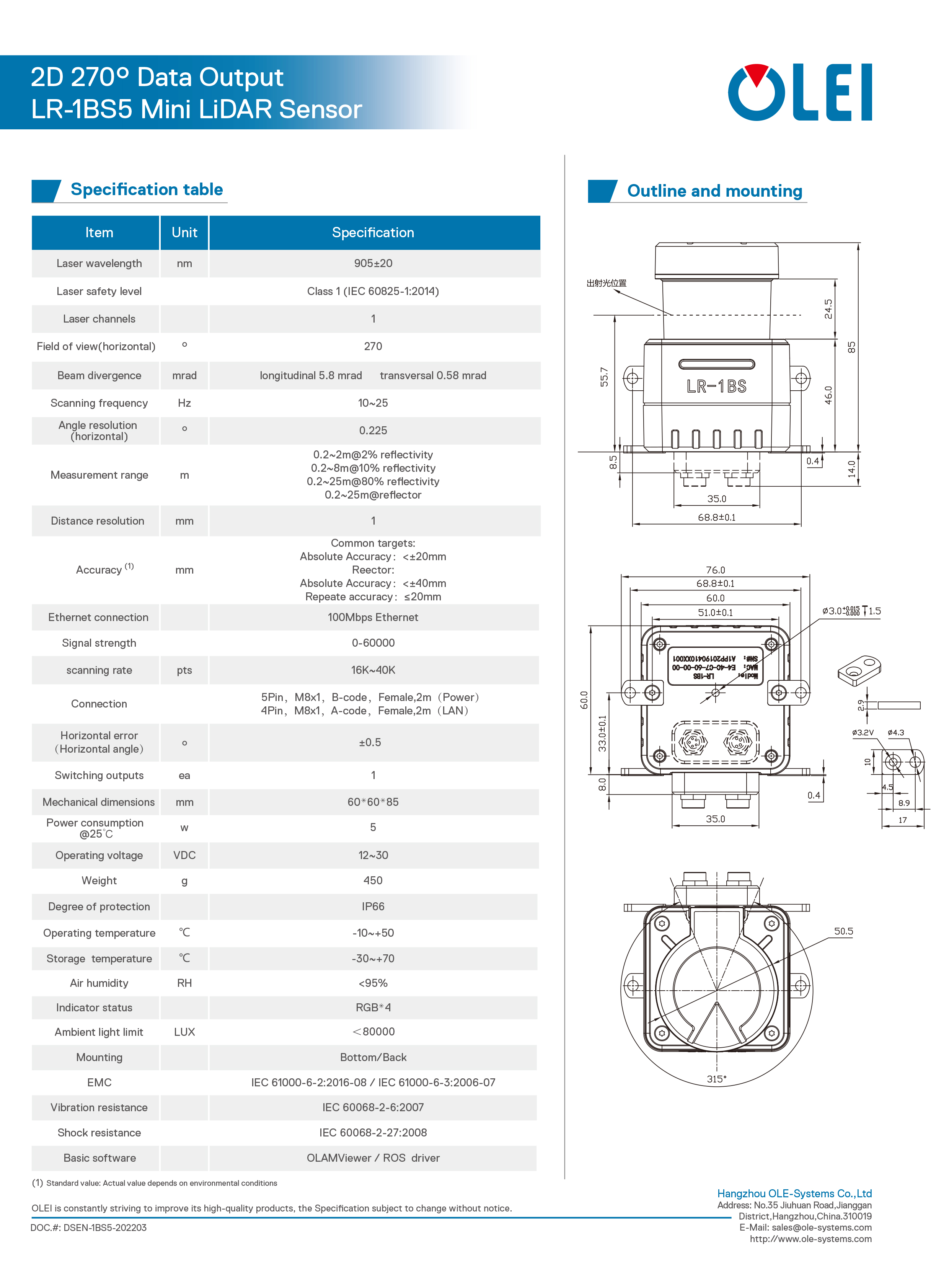

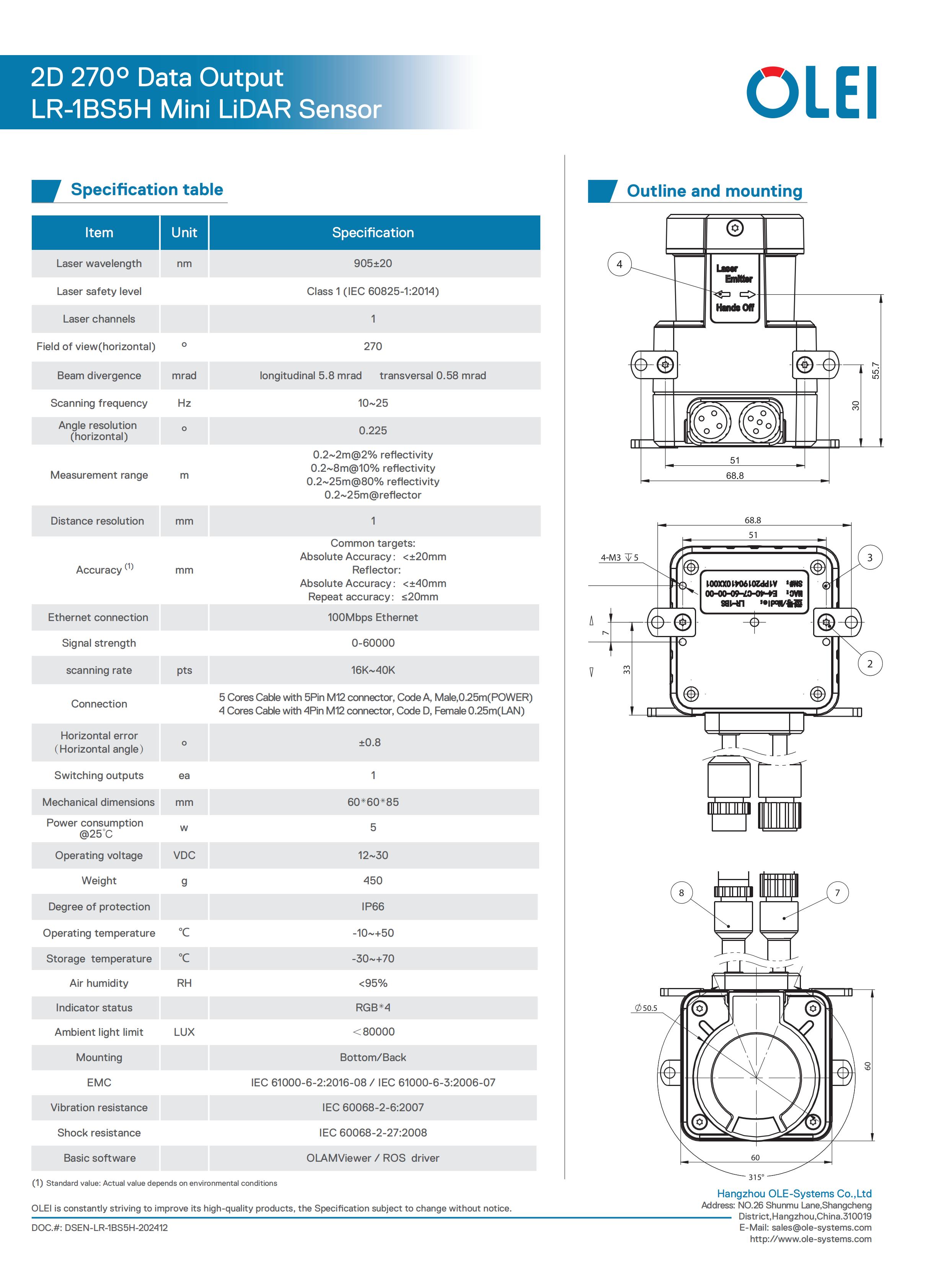

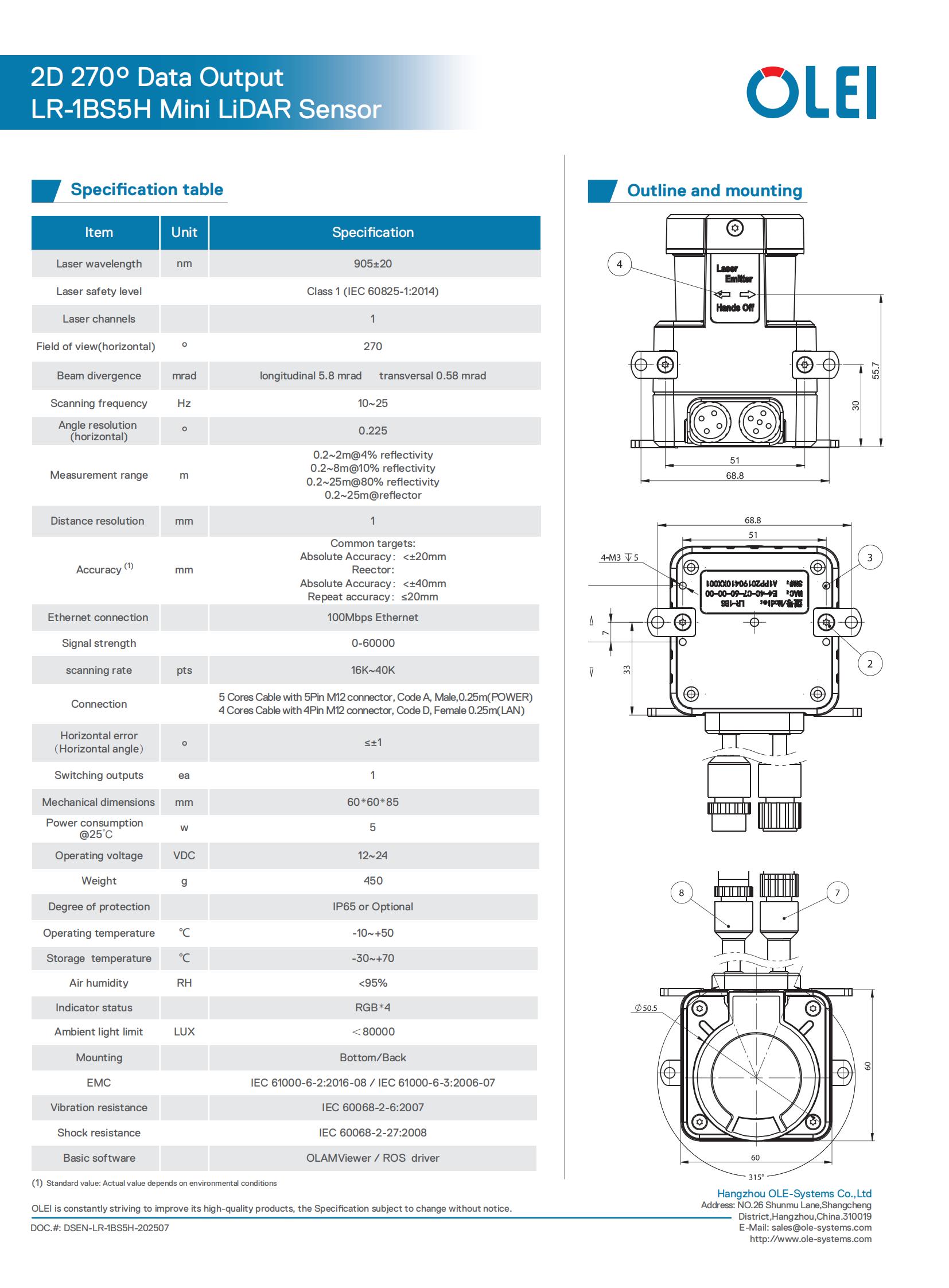

Datasheet

Num File name File type File layout Update time Operate
1 LR-1BS5H-datasheet_EN document pdf 2024-04-16 Download
2 LR-1BS5H-QuickStartUseManual_EN document pdf 2024-04-16 Download
3 LR-1BS5H-User Manual_EN document pdf 2024-04-16 Download
4 LR-1BS5H - CAD Drawings_EN document zip 2024-04-16 Download
5 LR-1BS/LR-1F - Communication Data Protocol_EN document pdf 2024-04-16 Download

Software

Num File name File type File layout Update time Operate
1 2D Lidar ResetConfig Software rar 2022-07-12 Download
2 Olamview(x64) Software zip 2024-04-16 Download
3 2D Lidar Ros Driver Software rar 2022-07-12 Download

Communication Protocol

Num File name File type File layout Update time Operate
1 LR-1BS - Certification Report (CE Verification) _EN Certificate pdf 2022-06-17 Download
2 LR-1BS - Certification Report (EMC) _EN Certificate pdf 2022-06-17 Download
3 LR-1BS - Certification Report (FCC) _EN Certificate pdf 2022-06-17 Download
4 LR-1BS - Certification Report (FDA) _EN Certificate pdf 2022-06-17 Download
5 LR-1BS - Certification Report (IP66) _EN Certificate pdf 2022-06-17 Download
6 LR-1BS - Certification Report (Laser Class 1) _EN Certificate pdf 2022-06-17 Download
7 LR-1BS - Certification Report (ROHS) _EN Certificate pdf 2022-06-17 Download
8 LR-1BS - Certification Report (VT+MST ) _EN Certificate pdf 2022-06-17 Download

DesignDrawing

Num File name File type File layout Update time Operate
No data
